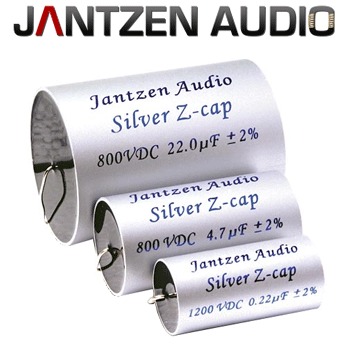

Jantzen Silver Z-Cap

Jantzen Silver Z-Cap

The Jantzen Audio Silver Z-cap range of polypropylene are a step up from the Superior range in that they have pure silver leadouts, offering a super smooth sound, a neutral tonal balance, without coloration. The sound signature is amazingly detailed with an authentic soundstage. They are made if polypropylene film metalized with aluminum and zinc particles.

They have a wide range of values from 0.1uF to 22uF with a high voltage rating so they will be at home in any high HT valve equipment.

The production process results in minimal inductance by interleaving the capacitor windings. The two windings are connected in series. So, for example, it takes two 2uF windings to make a 1uF capacitor of practically zero inductance.

Jantzen use a high tension machine to wind all their capacitors, thus producing very tightly wound capacitors. As a result they offer incredibly low inner vibration and keep micophony as low as possible. They have a tolerance of 2% and pure silver lead wire to secure the extreme high quality of these capacitors. The finish is a flame-retardant tape wrap, and the end of the caps is resin sealed to protect against humidity. Another key feature is, they do not need pre-aging, so no lengthy burn-in required.

All Jantzen Z-caps and Cross-Caps are non-polarized; so do not have a specific installation direction.

All JANTZEN Z-CAPS are LEAD FREE and RoHS COMPLIANT.



Specifications:
  • 0.1uF to 0.33uF: AC Voltage 600V, DC Voltage 1200V
  • 0.47uF to 22uF: AC Voltage 425V, DC Voltage 800V
  • Film: polypropylene film metalized with aluminum and zinc particles
  • Tolerance: 2%
  • Silver leadouts
  • Loss angle tan = 0.00002 to 1K
  • Loss angle tan = 0.00001 to 10K
