Neotech NEI-3003 MKIII UP-OCC Copper Coaxial Interconnect Cable

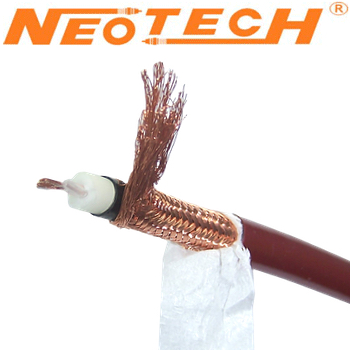

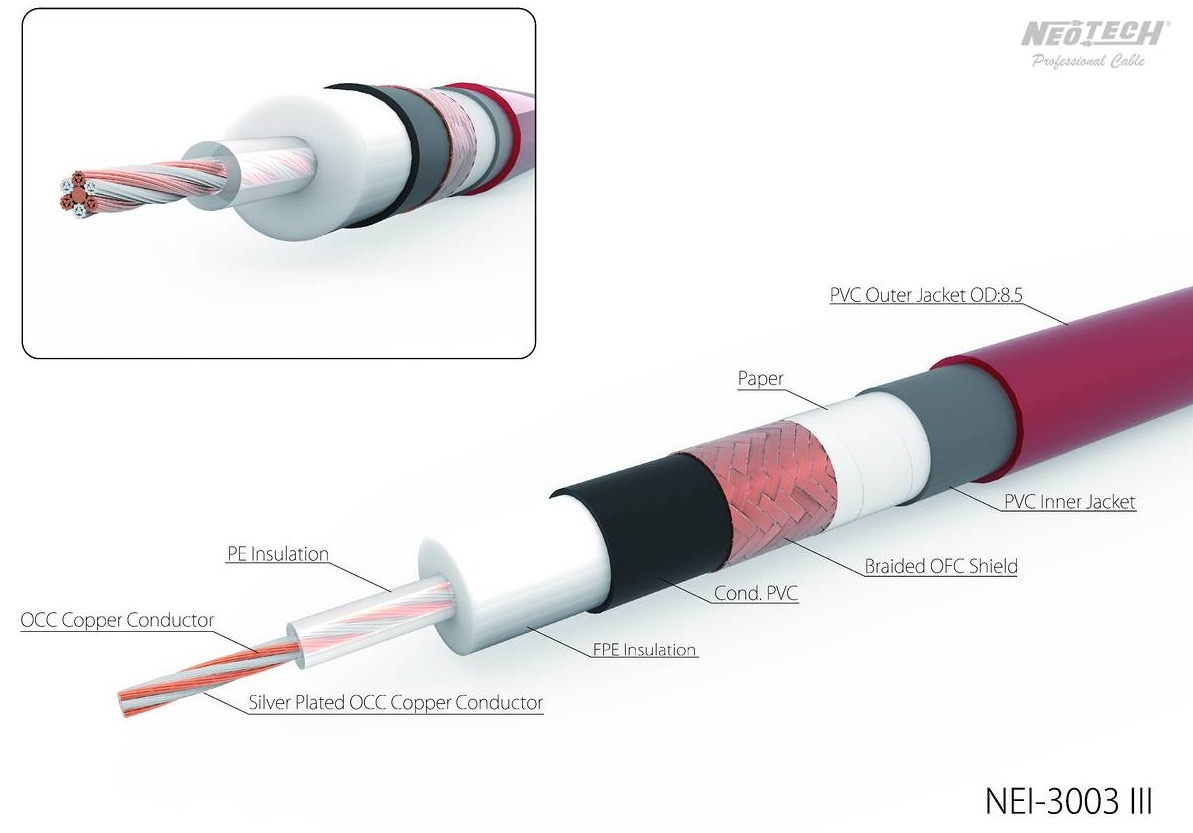

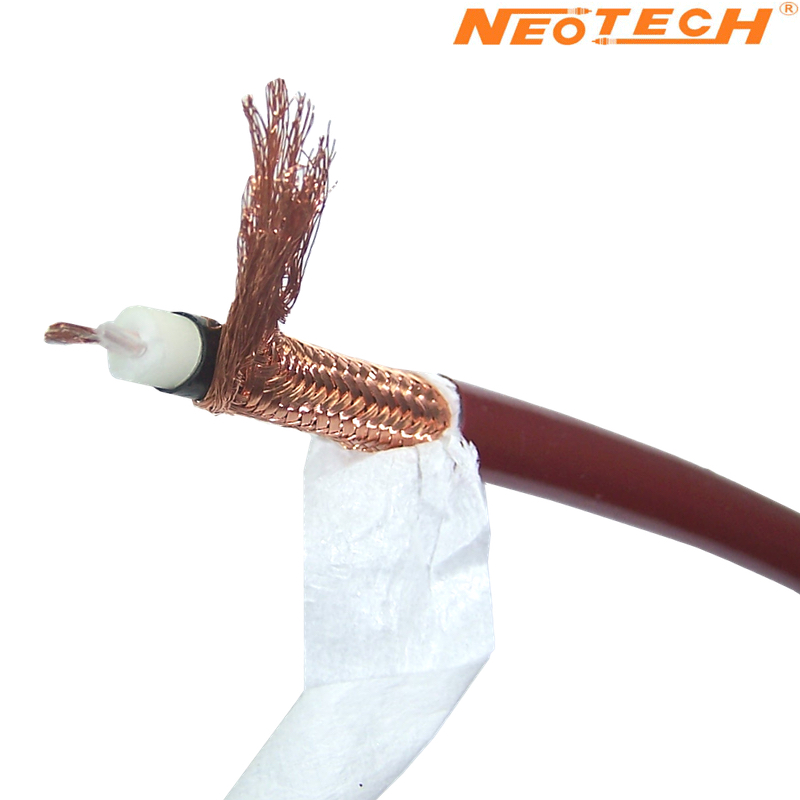

Neotech NEI-3003 MKIII interconnect cable is a coaxial type cable. Double layer Polyethylene & Foamed-Polyethylene insulate the OCC copper conductor to minimize signal loss and double screen conductive PVC & OCC copper braided shielding achieve sophisticated and correct sound performance.

Specification:

• Conductor material: ultra-clear copper UP-OCC and silver-plated copper of the highest purity SP UP-OCC
• Shielding: conductive PVC (conductive PVC) and ultra-pure copper braid UP-OCC
• Insulation: foamed polyethylene and polyethylene PE
• Resistance: 26 Ohm / km
• Capacity: 68.61 pF / m
• Inductance: 0.578 μH / m
• Outer sheath: polyvinyl chloride
• Outer diameter: 8.5 mm
• The diameter of inner conductor: 1.5mm

This wire is also available in offcut lengths at a discounted amount here

DISCONTINUED - SUPERSEDED BY THE NEI-3003G
